Fire Protection System
Green Mountain Bd is a reliable supplier of comprehensive fire protection system solution around the world. We provide a complete range of fire products for one-stop solution to optimize customers demand and lower customers cost, including fire sprinkler system, fire hydrant system, fire alarm system, and fire suppression system.
With world-class manufacturers, globe certificates approval (UL, FM, LPCB, BSI, VdS, etc.), warehouses close to seaport, customers from over 30 countries benefit from our quality-based product, fast scheduling and competitive price.

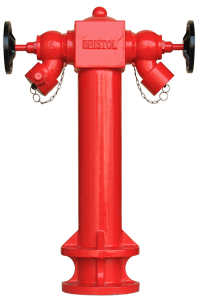

Two Way Pillar Hydrant
- Certificate: BS
- Base inlet: Flange as EN1092-2, DN100, PN16
- Test: Factory hydro test 30 bar
- Temperature: 4°C to 70°C
- Surface: FBE coating as AWWA C550

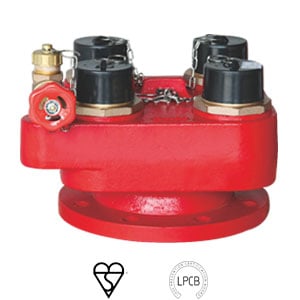

Fire Department Connection(4 Way)
- Certificate:BSI/ LPCB Approved
- Standard: BS 5041-3
- Inlet: 4 x BS336 (4 x 2.5″ BSP)
- Outlet: Flanged as EN 1092-2, DN150 with PN16
- Test: Factory hydro test 30 bar
- Temperature: 0°C to 38°C
- Surface: FBE coating as AWWA C550

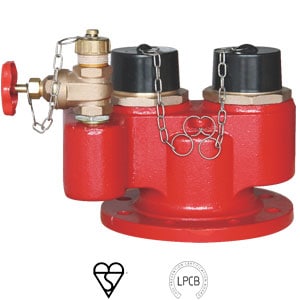

Fire Department Connection(2 Way)
- Certificate:BSI/ LPCB Approved
- Standard: BS 5041-3
- Inlet: 4 x BS336 (4 x 2.5″ BSP)
- Outlet: Flanged as EN 1092-2, DN150 with PN16
- Test: Factory hydro test 30 bar
- Temperature: 0°C to 38°C
- Surface: FBE coating as AWWA C550

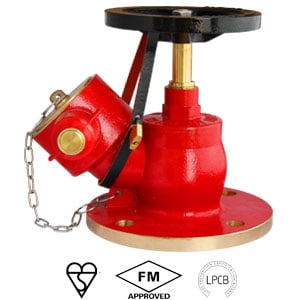

Landing valve(Class I Connection)
- Certificate:BSI/ LPCB Approved
- Standard: BS 5041-1
- Body: Copper alloy, T≥3mm
- Blank cap: Copper alloy/ plastic
- Chain: SS304
- Test: 22.5 bar
- Surface: Rough copper/ red or yellow paint

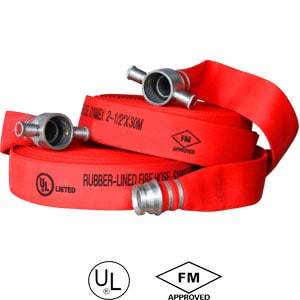

Fire Fighting Hose
- Certificate: UL Listed/ FM Approved
- Standard: ANSI/ UL 219, BS 6391
- Lined layer: EPDM/ PU
- Jacket: Single (14 bar)/ double (20 bar)
- Weave: Twill weave/ plain weave
- Coupling: 2 x Aluminium BS336
- Length: 15m ~ 30m/ Customized
- Color: White/ red

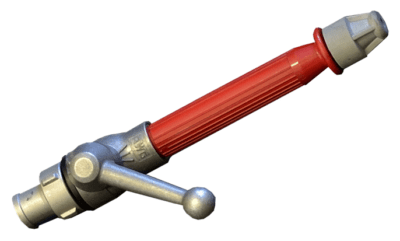

Jet/ Spray Nozzle
- Certificate:BSI/ TUV/ LPCB Approved
- Standard: BS336
- Material: Aluminum alloy as BS1490
- Control: Ball valve
- Angle: Water curtain angle ≥ 180°
- Test: 24 bar
Fire Hose Rack Cabinet
- Certificate: BS
- Capacity: Standard fire hose rack assembly Or adding landing valve x 1
- Mounting: Wall/ recessed/ semi-recessed
- Size: Compact size/ customized
- Door: Single or double doors (open 170°)
- Surface: Red epoxy powder coating (steel) Bright finish (SS or AL)

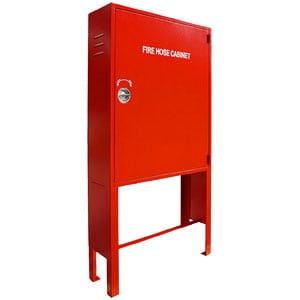

Pillar Hydrant Cabinet (Self-Standing)
- Certificate:BS
- Standard: Standard fire hose + accessories
- Mounting: Self-stand (floor mount)
- Size: Compact size/ customized
- Door: Single door (open 170°)°
- Surface: Red epoxy powder coating (steel) Bright finish (SS or AL)

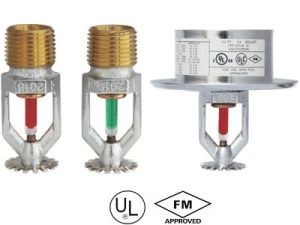

Pendent Sprinkler (Standard Response)
- Certificate: UL Listed/ FM Approved
- Standard: ANSI/ UL 199
- K factor: K 5.6, K 8.0
- Response: Standard with 5 mm glass bulb
- Escutcheon: Recessed escutcheon
- Thread: NPT/ BSPT
- W. pressure: 175 psi (1.21 MPa)
- Finish: Rough brass/ chrome plated/ white
Pendent Sprinkler (Quick Response)
- Certificate: UL Listed/ FM Approved
- Standard: ANSI/ UL 199
- K factor: K 5.6, K 8.0
- Response: Standard with 5 mm glass bulb
- Escutcheon: Recessed escutcheon
- Thread: NPT/ BSPT
- W. pressure: 175 psi (1.21 MPa)
- Finish: Rough brass/ chrome plated/ white

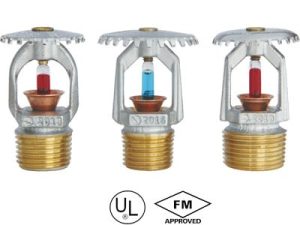

Upright Sprinkler (Standard Response)
- Certificate: UL Listed/ FM Approved
- Standard: ANSI/ UL 199
- K factor: K 5.6, K 8.0
- Response: Standard with 5 mm glass bulb
- Escutcheon: Recessed escutcheon
- Thread: NPT/ BSPT
- W. pressure: 175 psi (1.21 MPa)
- Finish: Rough brass/ chrome plated/ white
Upright Sprinkler (Quick Response)
- Certificate: UL Listed/ FM Approved
- Standard: ANSI/ UL 199
- K factor: K 5.6, K 8.0
- Response: Standard with 5 mm glass bulb
- Escutcheon: Recessed escutcheon
- Thread: NPT/ BSPT
- W. pressure: 175 psi (1.21 MPa)
- Finish: Rough brass/ chrome plated/ white

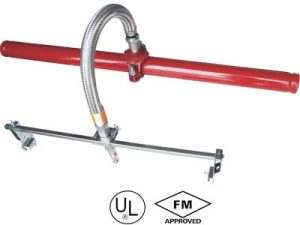

Braided Flexible Sprinkler Hose
- Certificate: UL Listed/ FM Approved
- Standard: UL 2443
- Hose diameter: O.D. 27mm, with flow 21.0mm
- Inlet: 1″ NPT or BSPT male thread
- Outlet: NPT or BSPT female thread
- W. pressure: 175 psi (1.21 MPa)
- W. pressure: 175 psi (1.21 MPa)
- Temperature: Max ambient 107°C

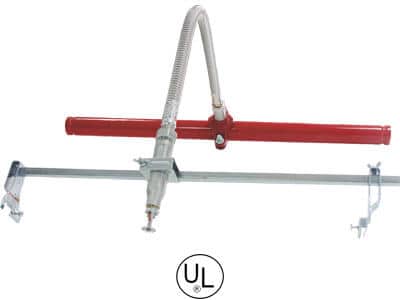

Unbraided Flexible Sprinkler Hose
- Certificate: UL Listed/ FM Approved
- Standard: UL 2443
- Hose diameter: O.D. 27mm, with flow 21.0mm
- Inlet: 1″ NPT or BSPT male thread
- Outlet: NPT or BSPT female thread
- W. pressure: 175 psi (1.21 MPa)
- W. pressure: 175 psi (1.21 MPa)
- Temperature: Max ambient 107°C

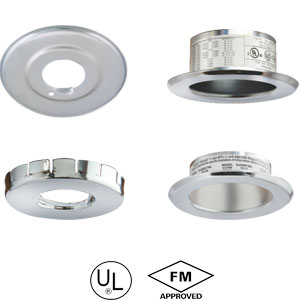

Sprinkler Escutcheon
- Certificate: UL Listed/ FM Approved
- Thread: NPT/ BSPT
- Type: One-piece/ two-pieces
- Closure: Carbon steel/ SS (two-piece)
- Mounting plate: Carbon steel/ SS
- Finish: Chrome plated/ white painting/ Brass
Sprinkler Guard
- Certificate: UL Listed/ FM Approved
- Type: Non shield/ shield with screw
- Base plate: Carbon steel
- Guard bar: Carbon steel
- Finish: Red painted/ zinc chromate

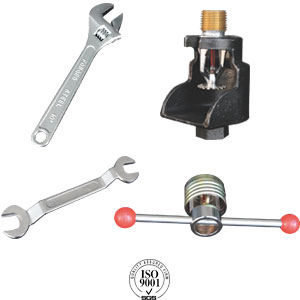

Sprinkler Head Wrench
- Certificate: ISO
- Connection: 1/2″ ~ 1″ (DN15 ~ DN25)
- Application: Standard sprinkler/ ESFR sprinkler Recessed sprinkler/ concealed sprinkler
- Material: Carbon steel
- Finish: Zinc/ chromed coated

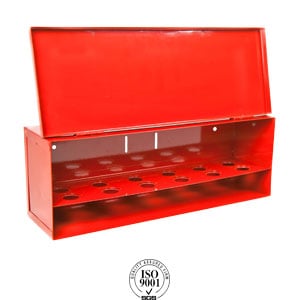

Sprinkler cabinet
- Certificate: ISO
- Capacity: From 3pcs to 12pcs sprinkler head
- Body: Heavy gauge carbon steel
- Mounting: Wall mounting/ strap-type hanger
- Finish: Red painted
- Ref. No.: S20
