MS Pipe & Fittings
ERW steel pipe is formed by rolling strip and welding the seam, with tighter dimensional tolerances and less weight. The weld seam is heat treated after welding that no untempered martensite remains, and the weld flash can be removed from both inner and outer surfaces. ASTM A53 ERW steel pipe is a typical carbon steel pipe. It is largely used to convey fluids at low / medium pressures such as oil, gas, steam, water, air and also for mechanical applications.
Green Mountain BD supplies ASTM A53 ERW steel pipe in UL listed/ FM approved.

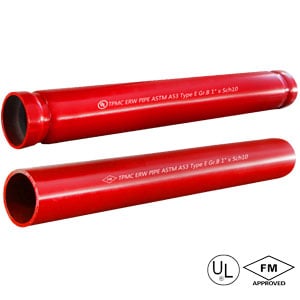

ASTM A53 ERW STEEL PIPE
- Certificate: UL Listed/ FM Approved
- Standard: ASTM A53, Type E, Grade B
- Dimension: Sch10/ Sch40 as ASME B36.10M
- Application: Fire main pipe, fire pump pipe, fire standpipe, fire sprinkler branch pipe
Seamless steel pipe (SMLS) is formed by drawing a solid billet over a piercing rod to create the hollow shell, without welding or seam. It is suitable for bending and cutting. The advantage of seamless steel is the ability of withstanding higher pressure. ASTM A53 specification also covers seamless steel pipe. The pipe is intended for pressure and mechanical applications and is also acceptable for ordinary uses in oil, gas, steam, water and air lines. It is suitable for welding, bending and flanging.
Green Mountain BD supplies ASTM A53 seamless steel pipe in UL listed.
GROOVED FITTINGS
Grooved fittings are used for connecting Standpipe to control, distribute, or support pipeline in different sizes or directions. By groove connection, project time is saved a lot with fast installation and easy maintenance. TPMC supply grooved pipe fittings for fire fighting system.
TPMC provides grooved fitting in UL listed/ FM approved:
- Grooved elbow
- Grooved cross
- Grooved cap
Grooved 90° Elbow
- Certificate: UL Listed/ FM Approved
- Standard: ANSI/ UL 213C
- Material: Ductile iron as ASTM A536, 65-45-12
- Type: Short radius, R=1.0D
- Temperature: -30°C to 300°C
- W. pressure: 300PSI (2.07MPa)
- Surface: Red paint/ hot dip galvanised
Grooved 45° elbow
- Certificate: UL Listed/ FM Approved
- Standard: ANSI/ UL 213C
- Material: Ductile iron as ASTM A536, 65-45-12
- Type: Short radius, R=1.0D
- Temperature: -30°C to 300°C
- W. pressure: 300PSI (2.07MPa)
- Surface: Red paint/ hot dip galvanised
Grooved 22.5° elbow
- Certificate: UL Listed/ FM Approved
- Standard: ANSI/ UL 213C
- Material: Ductile iron as ASTM A536, 65-45-12
- Temperature: -30°C to 300°C
- W. pressure: 300PSI (2.07MPa)
- Surface: Red paint/ hot dip galvanised
Grooved straight tee (Equal tee)
- Certificate: UL Listed/ FM Approved
- Standard: ANSI/ UL 213C
- Material: Ductile iron as ASTM A536, 65-45-12
- Temperature: -30°C to 300°C
- W. pressure: 300PSI (2.07MPa)
- Surface: Red paint/ hot dip galvanised
Grooved reducing tee
- Certificate: UL Listed/ FM Approved
- Standard: ANSI/ UL 213C
- Material: Ductile iron as ASTM A536, 65-45-12
- Temperature: -30°C to 300°C
- W. pressure: 300PSI (2.07MPa)
- Surface: Red paint/ hot dip galvanised
Grooved reducing tee with threaded branch
- Certificate: UL Listed/ FM Approved
- Standard: ANSI/ UL 213C
- Material: Ductile iron as ASTM A536, 65-45-12
- Branch: Female thread, NPT/ BSPT
- Temperature: -30°C to 300°C
- W. pressure: 300PSI (2.07MPa)
- Surface: Red paint/ hot dip galvanised
Grooved straight cross (Equal cross)
- Certificate: UL Listed/ FM Approved
- Standard: ANSI/ UL 213C
- Material: Ductile iron as ASTM A536, 65-45-12
- Temperature: -30°C to 300°C
- W. pressure: 300PSI (2.07MPa)
- Surface: Red paint/ hot dip galvanised
Grooved reducing cross
- Certificate: UL Listed/ FM Approved
- Standard: ANSI/ UL 213C
- Material: Ductile iron as ASTM A536, 65-45-12
- Temperature: -30°C to 300°C
- W. pressure: 300PSI (2.07MPa)
- Surface: Red paint/ hot dip galvanised
Grooved reducing cross with threaded branch
- Certificate: UL Listed/ FM Approved
- Standard: ANSI/ UL 213C
- Material: Ductile iron as ASTM A536, 65-45-12
- Branch: Female thread, NPT / BSPT
- Temperature: -30°C to 300°C
- W. pressure: 300PSI (2.07MPa)
- Surface: Red paint/ hot dip galvanised
Grooved concentric reducer
- Certificate: UL Listed/ FM Approved
- Standard: ANSI/ UL 213C
- Material: Ductile iron as ASTM A536, 65-45-12
- Temperature: -30°C to 300°C
- W. pressure: 300PSI (2.07MPa)
- Surface: Red paint/ hot dip galvanised
Grooved concentric reducer with threaded run
- Certificate: UL Listed/ FM Approved
- Standard: ANSI/ UL 213C
- Material: Ductile iron as ASTM A536, 65-45-12
- Minor run: Female thread, NPT/ BSPT
- Temperature: -30°C to 300°C
- W. pressure: 300PSI (2.07MPa)
- Surface: Red paint/ hot dip galvanised
Grooved eccentric reducer
- Certificate: UL Listed/ FM Approved
- Standard: ANSI/ UL 213C
- Material: Ductile iron as ASTM A536, 65-45-12
- Temperature: -30°C to 300°C
- W. pressure: 300PSI (2.07MPa)
- Surface: Red paint/ hot dip galvanised
Grooved end cap
- Certificate: UL Listed/ FM Approved
- Standard: ANSI/ UL 213C
- Material: Ductile iron as ASTM A536, 65-45-12
- Minor run: Female thread, NPT/ BSPT
- Temperature: -30°C to 300°C
- W. pressure: 300PSI (2.07MPa)
- Surface: Red paint/ hot dip galvanised
Grooved drain cap with concentric hole
- Certificate: UL Listed/ FM Approved
- Standard: ANSI/ UL 213C
- Material: Ductile iron as ASTM A536, 65-45-12
- Centre hole: Female thread, NPT/ BSPT
- Temperature: -30°C to 300°C
- W. pressure: 300PSI (2.07MPa)
- Surface: Red paint/ hot dip galvanised
